Object

Group publication title:

2024, nr 4, JTIT-artykuły

Abstrakt:

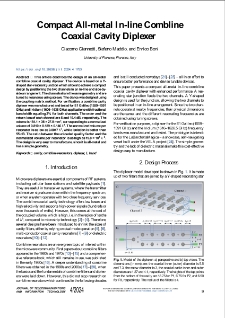

This article describes the design of an all-metal combline coaxial cavity diplexer. The device is based on a Y-shaped star-resonant junction which allows to achieve a compact design by positioning the two channels in an in-line and side-by-side arrangement. The channels share the same geometry and are tuned to resonance using screws. The device was designed using the coupling matrix method. For verification, a combline cavity diplexer was manufactured and tested for E1 Galileo (1559-1591 GHz) and Iridium (1606-1638 GHz) applications with fractional bandwidth equaling 2% for both channels. The order and the return loss of each channel are 5 and 19.4 dB, respectively. The volume is 154.1 × 36 × 27.8 mm³, corresponding to a normalized volume of 0.810 × 0.189 × 0.146 λ³. The normalized volume per resonator is as low as 0.0047 λ³, while isolation is better than 55 dB. The ratio between the unloaded quality factor and the normalized volume per resonator is as high as 19.8 × 10⁴ λ⁻³. The design is very easy to manufacture, since it is all-metal and has a simple geometry.

Number:

4

Publisher:

National Institute of Telecommunications

Resource Identifier:

ISSN 1509-4553, on-line: ISSN 1899-8852 ; oai:bc.itl.waw.pl:2361

DOI:

10.26636/jtit.2024.4.1783

ISSN:

1509-4553

eISSN:

1899-8852

Source:

Journal of Telecommunications and Information Technology

Language:

ang

License:

CC BY 4.0

rights owner:

Instytut Łączności - Państwowy Instytut Badawczy
