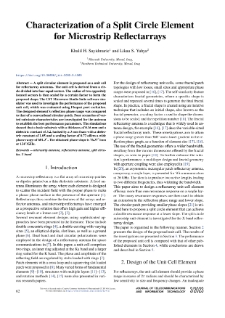

Characterization of a Split Circle Element for Microstrip Reflectarrays, Journal of Telecommunications and Information Technology, 2023, nr 3
Download

Title: Characterization of a Split Circle Element for Microstrip Reflectarrays, Journal of Telecommunications and Information Technology, 2023, nr 3

Creator:

Sayidmarie, Khalil H. ; Yahya , Likaa S.

Date:

2023, nr 3

Resource Type:

artykuł

Group publication title:

2023, nr 3, JTIT-artykuły

Description:

A split circular element is proposed as a unit cell for reflectarray antennas. The unit cell is derived from a circle divided into four equal sectors. The radius of two oppositely located sectors is then scaled by a certain factor to form the proposed shape. The CST Microwave Studio Suite software simulator was used to investigate the performance of the proposed unit cell, which was evaluated using Floquet port excitation. The designed element's reflection phase range was compared to that of a conventional circular patch. Four scenarios of varied substrate characteristics are investigated for the antenna to establish the best performance parameters. The simulations showed that a basic substrate with a thickness of 0.16 mm and a dielectric constant of 3.2, backed by a 3 mm foam with a dielectric constant of 1.05 and a scaling factor of 0.72 offers a wide phase range of 601.3°. The obtained phase slope is 76.37°/mm or 134°/GHz.

Publisher:

Instytut Łączności - Państwowy Instytut Badawczy

Format:

application/pdf

Resource Identifier:

oai:bc.itl.waw.pl:2294 ; ISSN 1509-4553, on-line: ISSN 1899-8852

DOI:

10.26636/jtit.2023.3.1363

eISSN:

1899-8852

Source:

Journal of Telecommunications and Information Technology

Language:

ang

Rights Management:

Biblioteka Naukowa Instytutu Łączności

Subject and keywords:

microstrip antenna X band split circular reflectarray antenna
